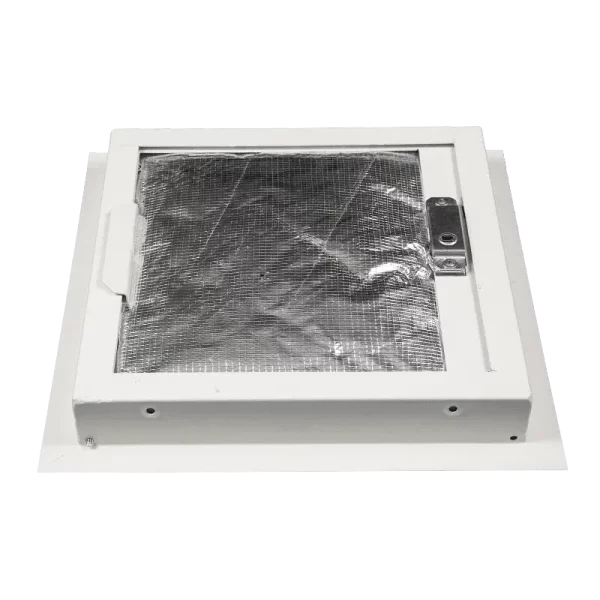

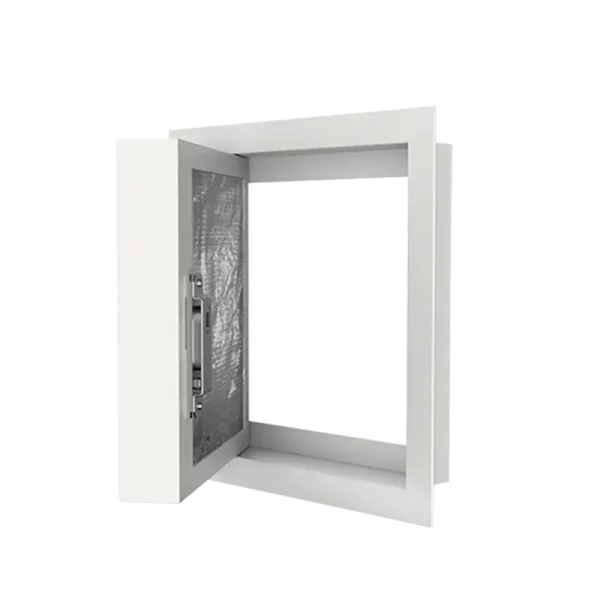

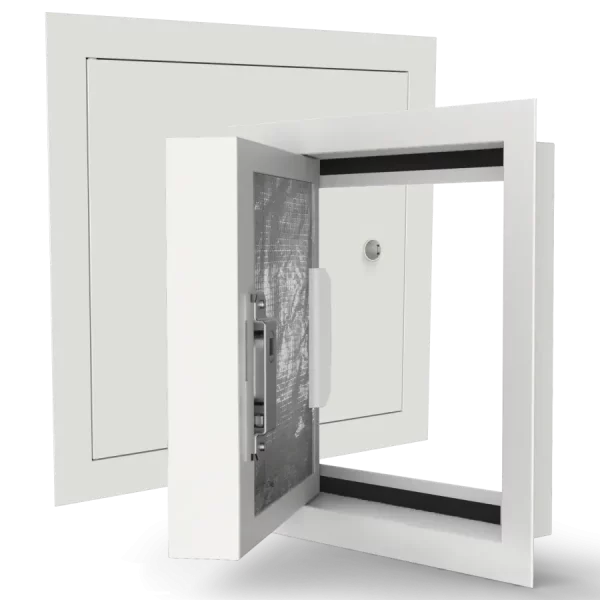

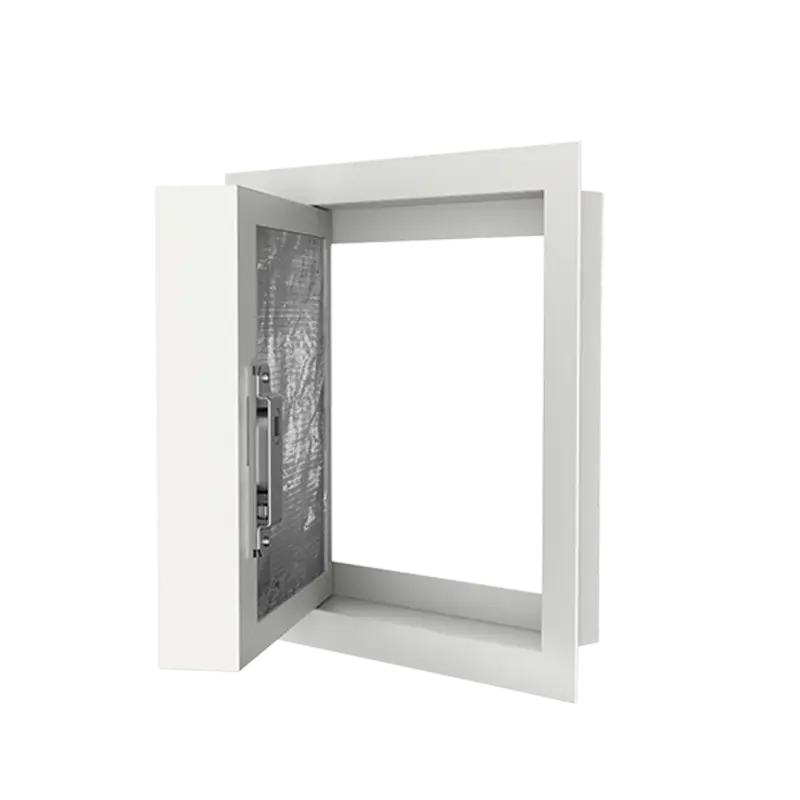

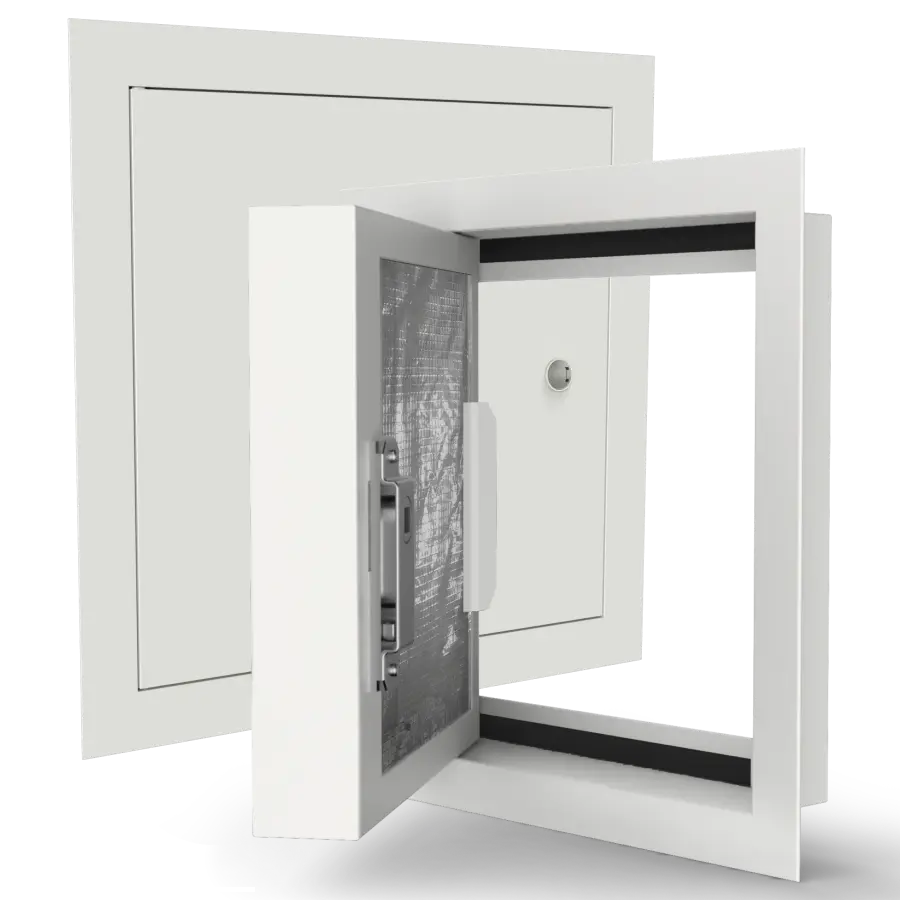

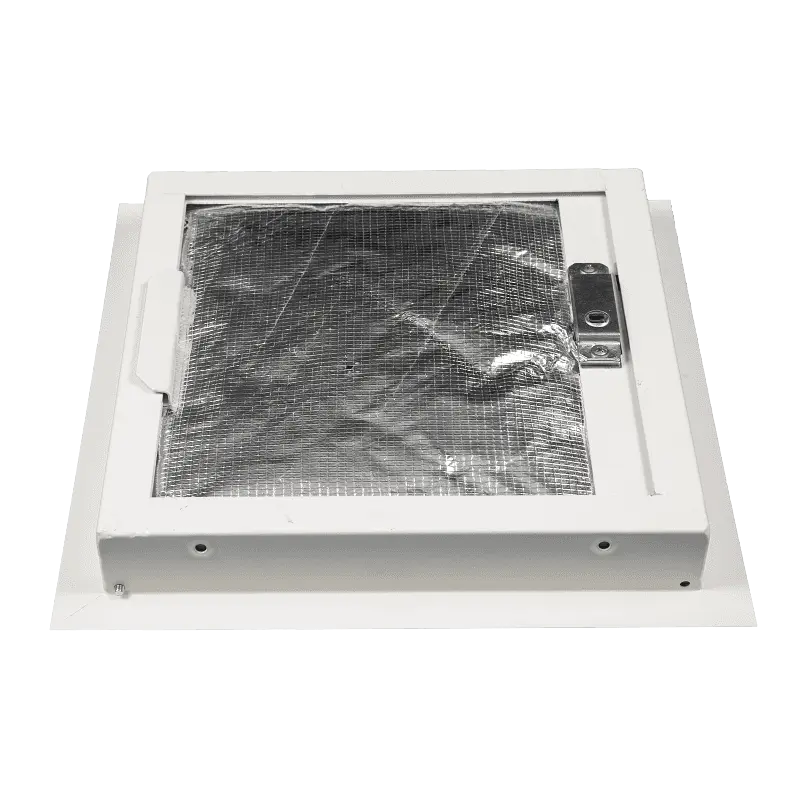

FIRE RATED ACCESS PANELS(PICTURE FRAME)

SPECIFICATION

● 1 hour fire rated(1 FR)option

●Picture Frame(PF)

●Manufactured to order

●1.2mm zintec steel

●CNC manufactured to ISO9001:2015

●Budget Lock

●Frame options to suit finishing requirements

●Compression seal gasket

●Fully matt powder coated,suitable for finishing on site

●Anti-bacterial specialist coating option

●Acoustic 32dB

E-mail : sales@highsky-group.com

Category:

Description

Part No. Standard size(mm&inch) Structural opening X&Y(mm) Clear opening Depth(mm)
FZFR2020PF 200×200 8×8 205×205 200×200 140×150 45
FZFR3030PF 300×300 12×12 305×305 300×300 240×250 45
FZFR3060PF 300×600 12×24 305×605 300×600 240×550 45
FZFR4545PF 450×450 18×18 455×455 450×450 390×400 45
FZFR5555PF 550×550 22×22 555×555 550×550 490×500 45
FZFR6060PF 600×600 24×24 605×605 600×600 540×550 45
FZFR6090PF 600×900 24×36 605×905 600×900 540×850 45
FZFR9090PF 900×900 36×36 905×905 900×900 840×850 45
FZFR60120PF 600×1200 24×48 605×1205 600×1200 540×1155 45
